Tatra Phoenix

Did you know that...

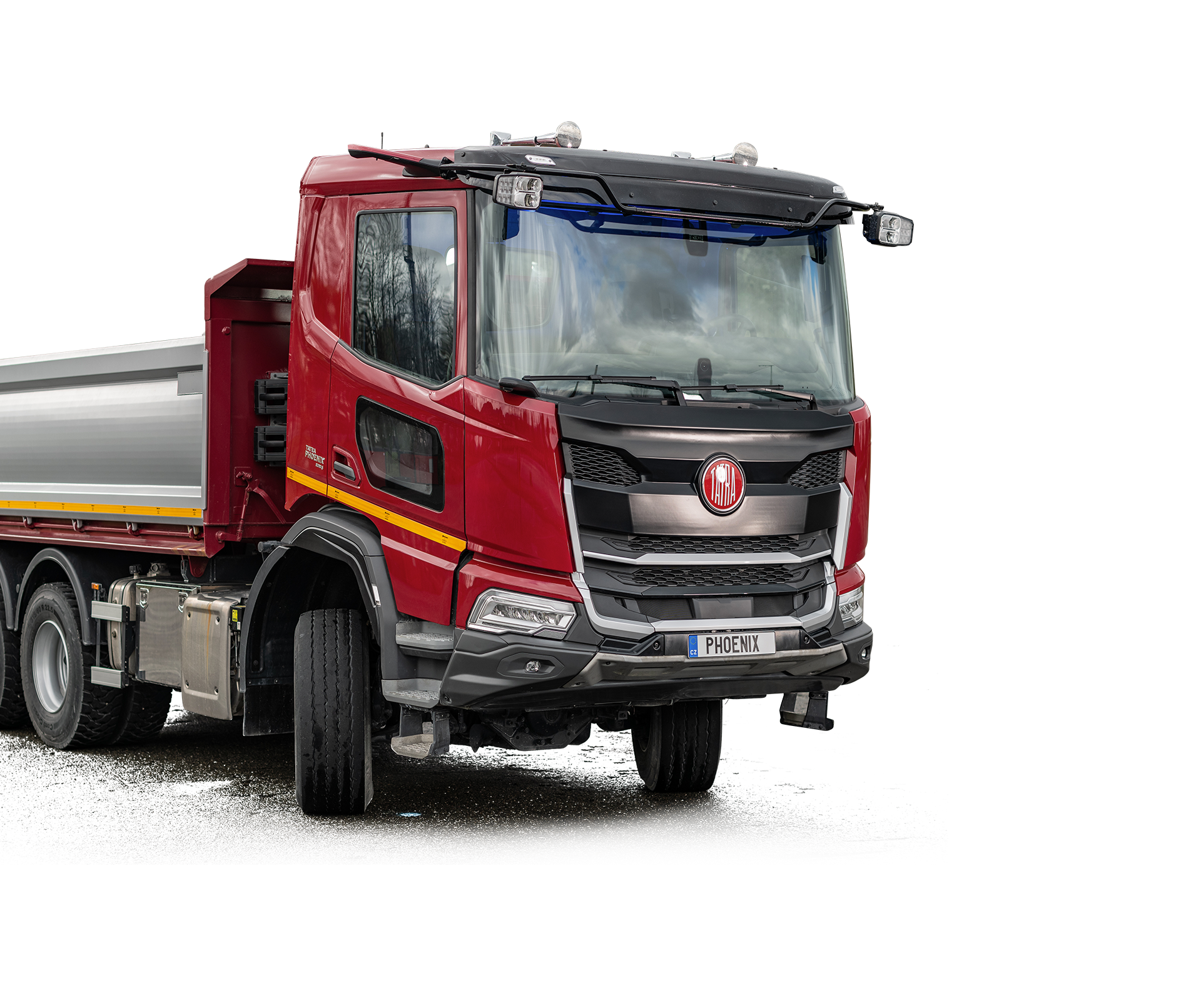

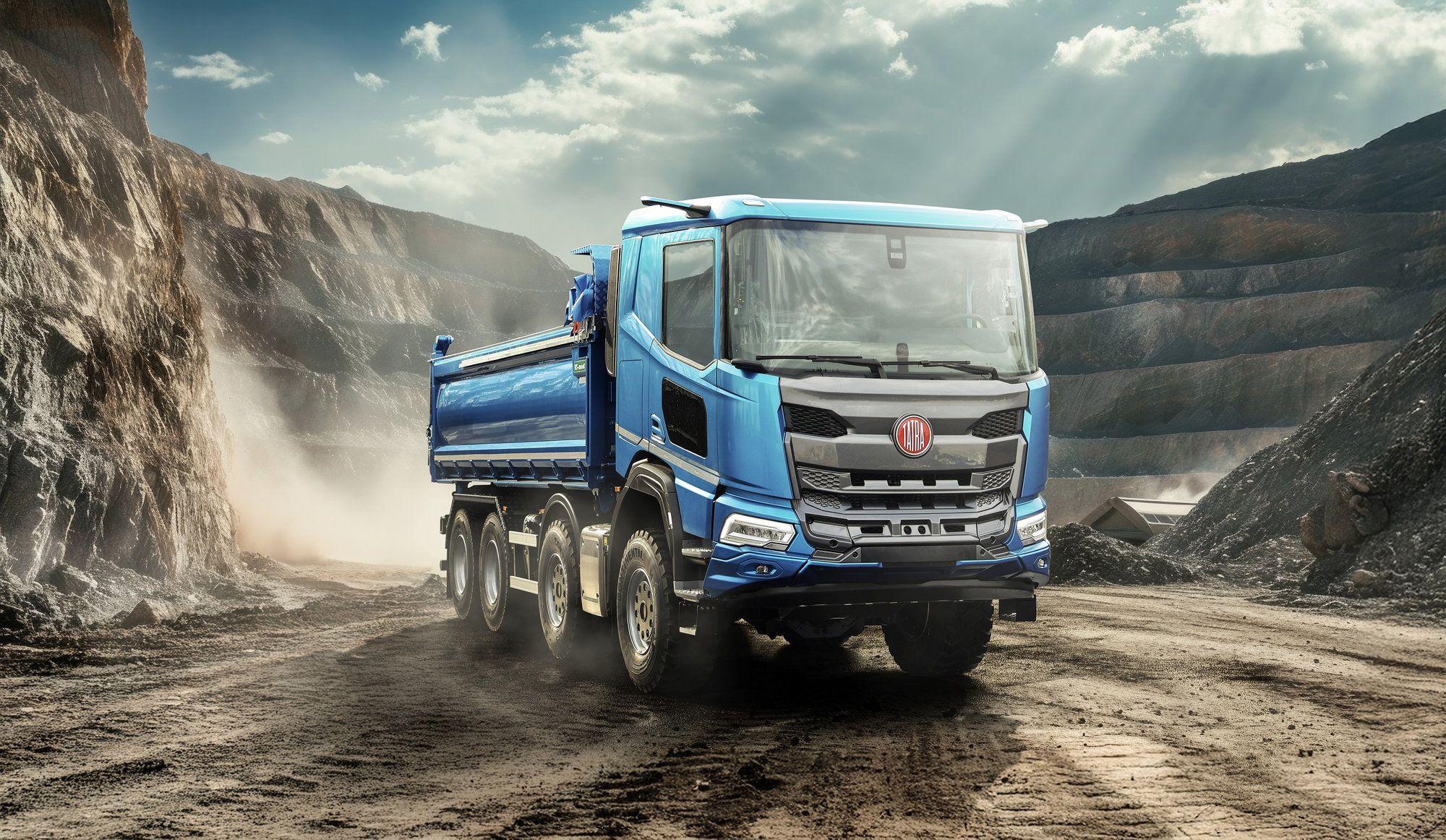

The basic chassis configurations offered for the TATRA PHOENIX series are 4x4, 6x6 and 8x8 (8x6), but special multi-axle configurations can also be prepared on request.

> 5000

TATRA PHOENIX vehicles produced

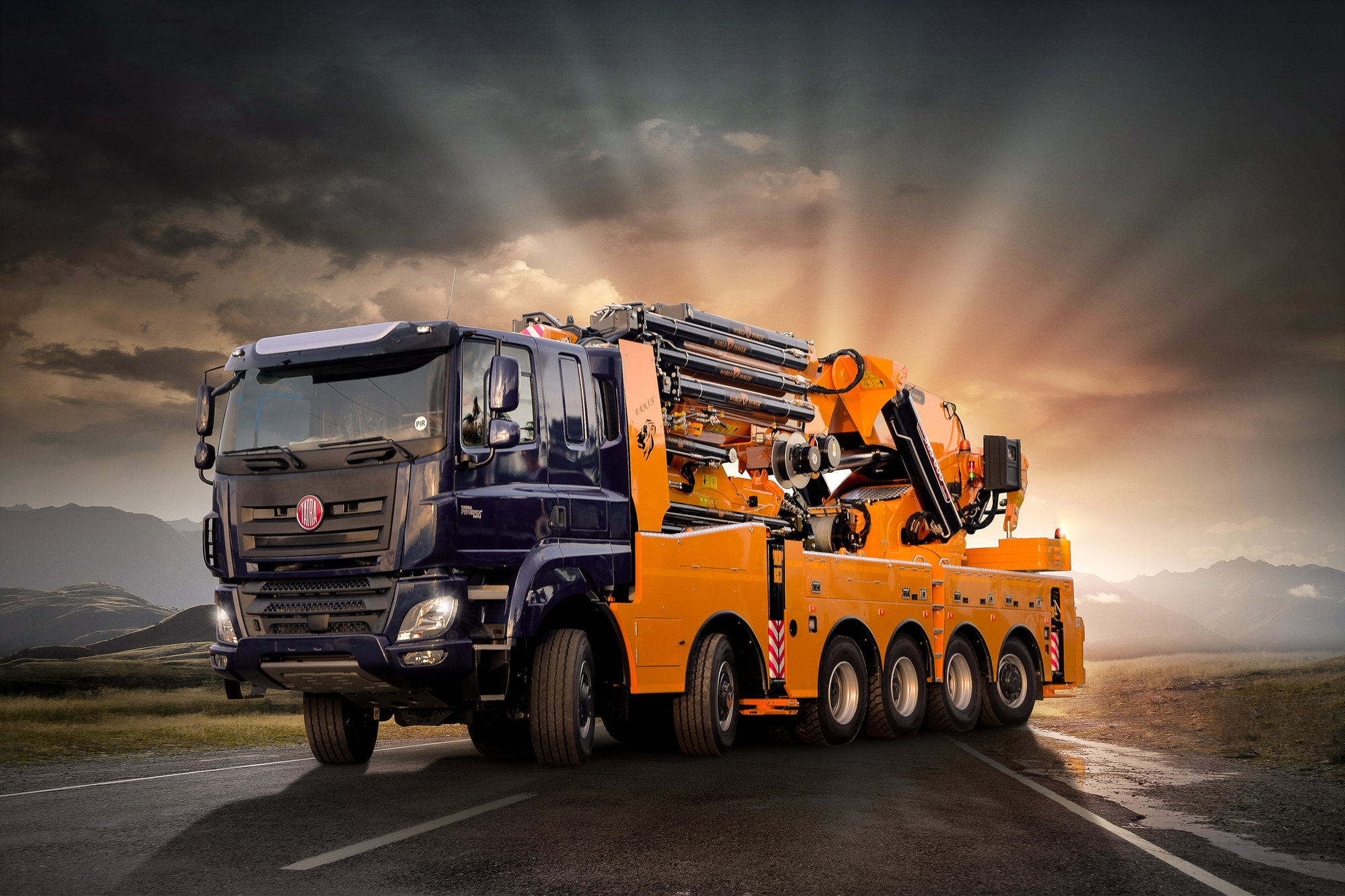

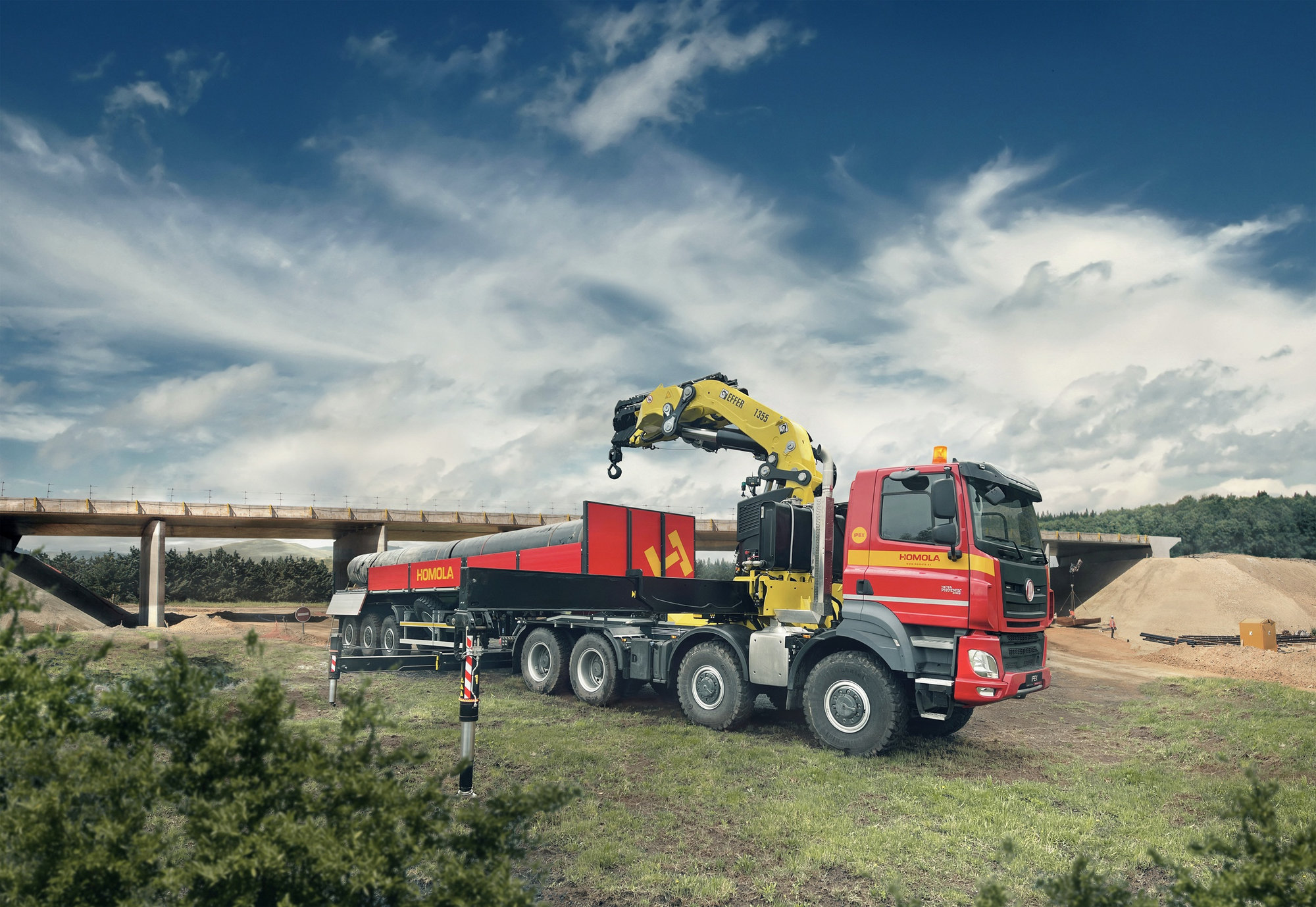

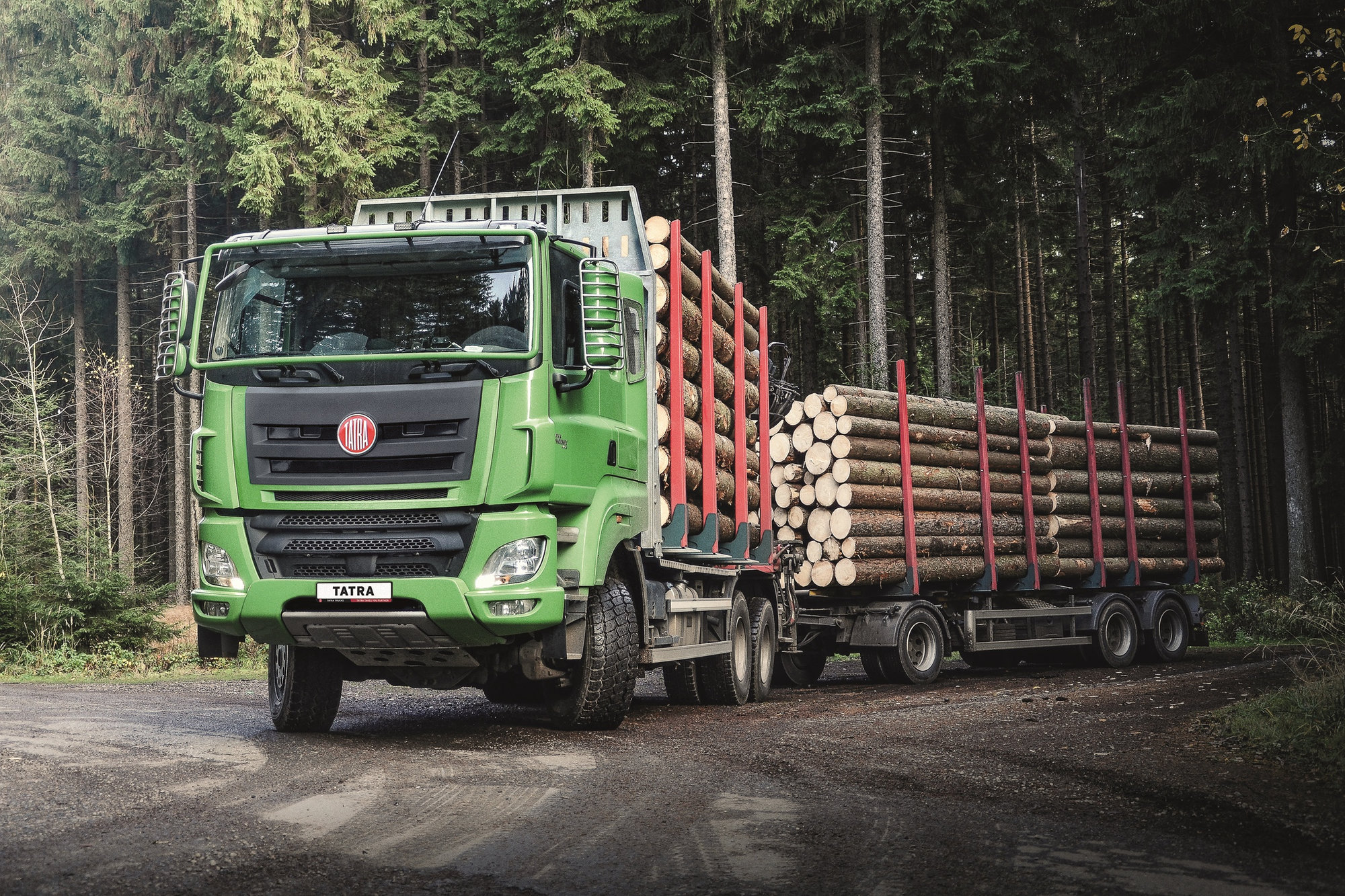

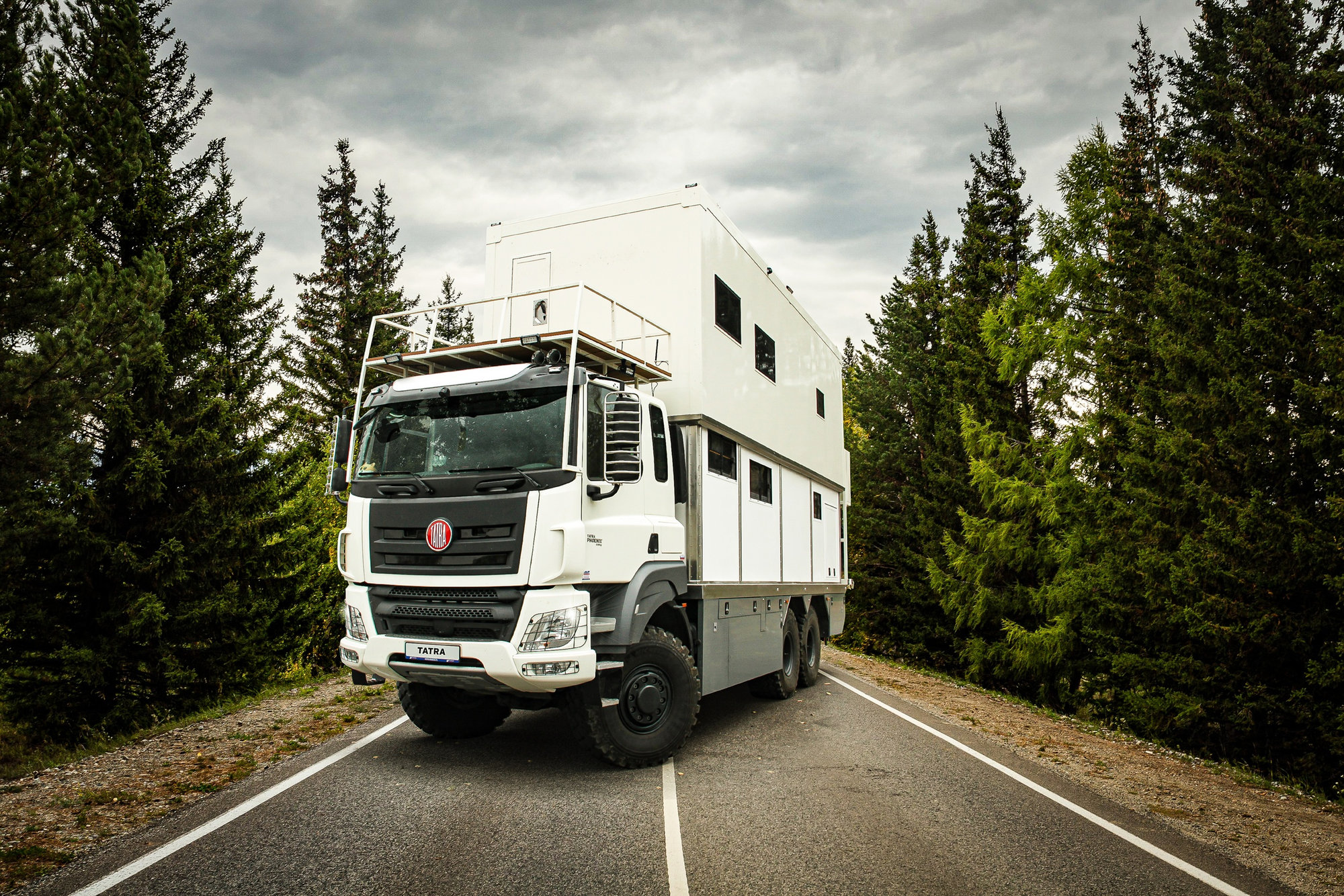

Custom-made superstructures

4x4 - 16x16

Available chassis variants

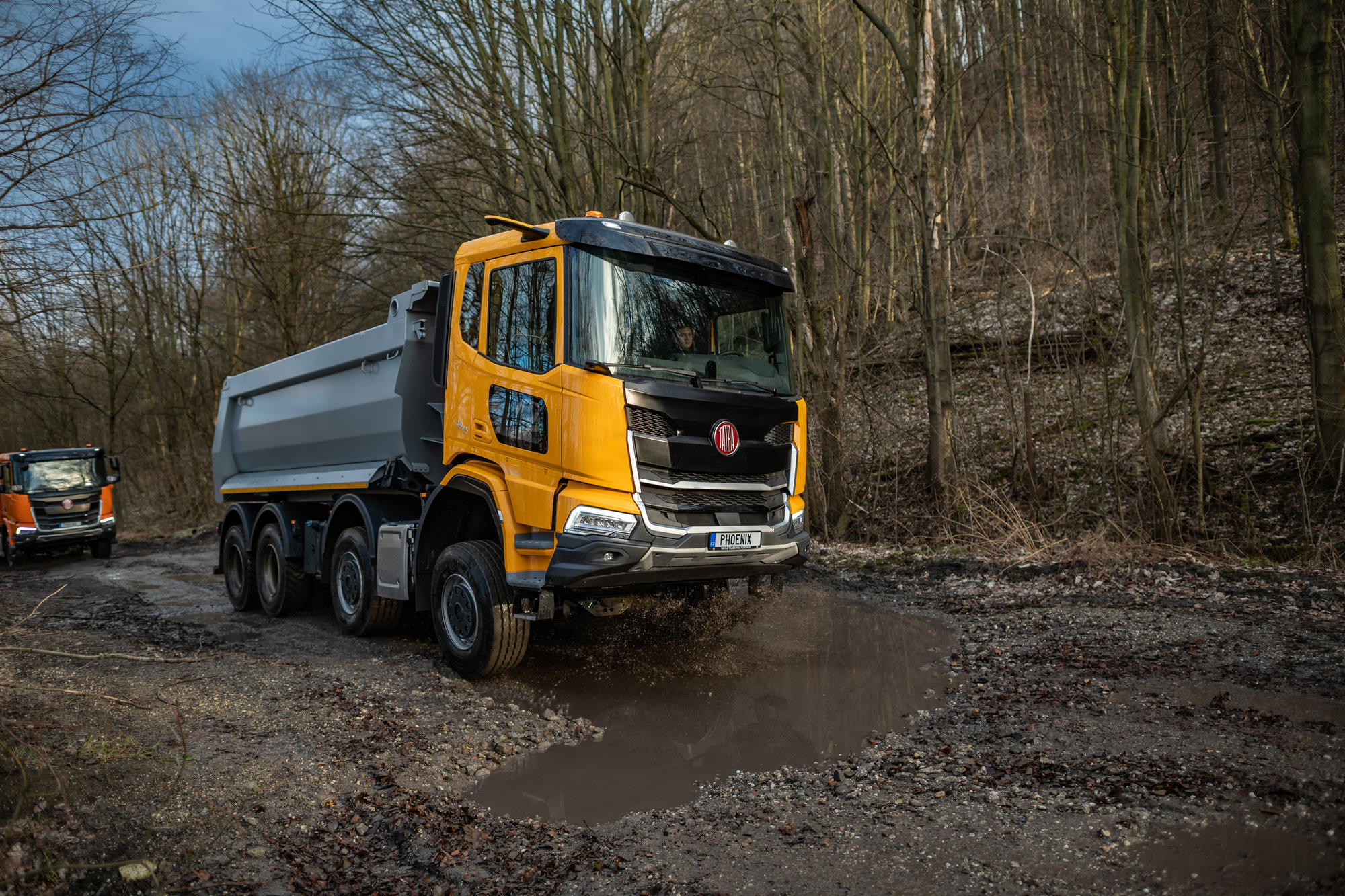

Made for extreme terrain

The new generation of TATRA PHOENIX trucks retains the unrivalled concept of a chassis with a central tube and exclusive air suspension on all axles.

New modern cab

Safety first

Innovated Paccar MX-11 and MX-13 engines

NEW MODERN CAB

TATRA PHOENIX offers...

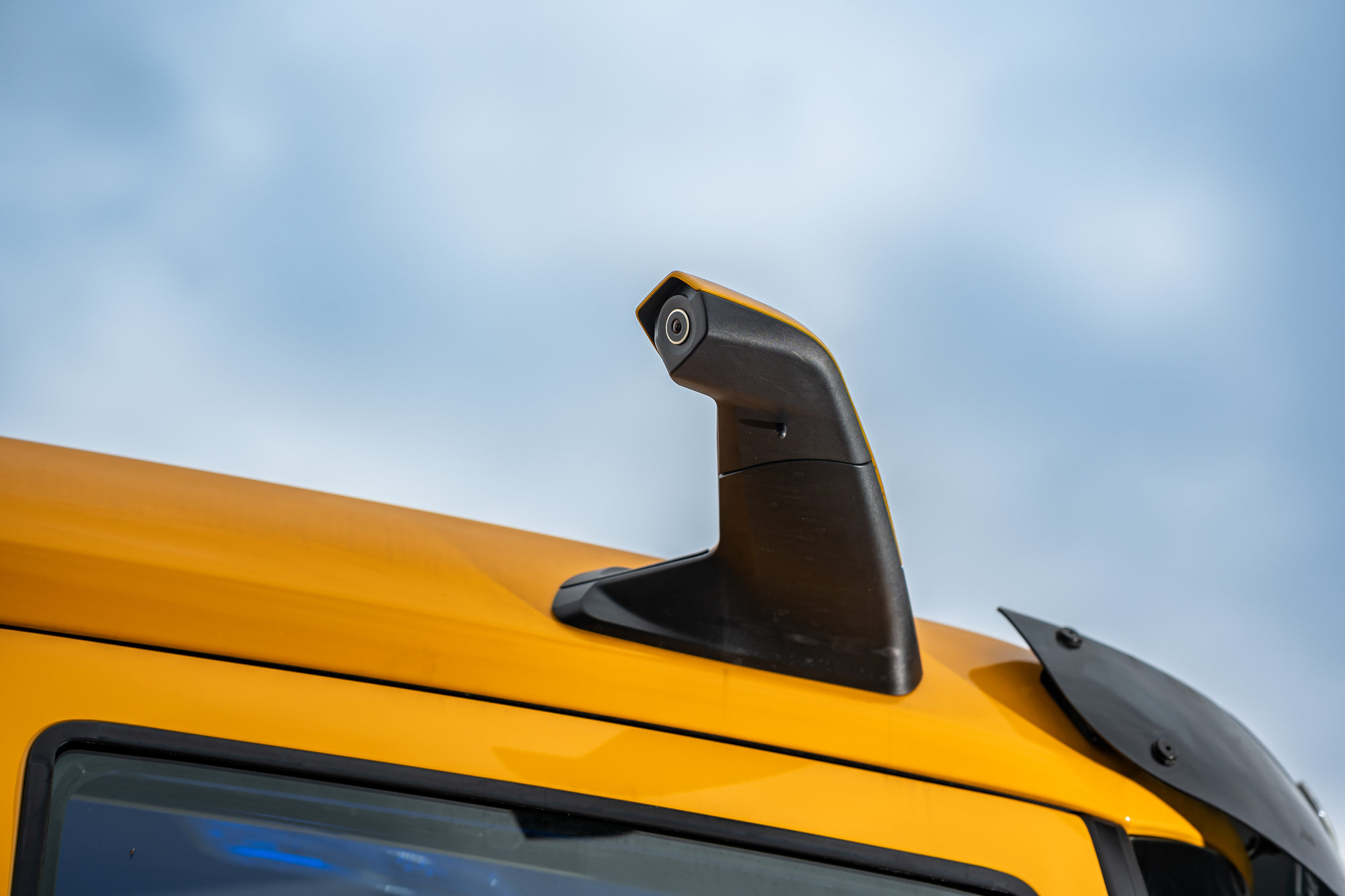

The cab is offered in a short (day) version, an extended (sleeper) version and a sleeper space version with a raised roof with one or two berths. In addition, there is the option of equipping the cabs with modern electronic assistance systems.

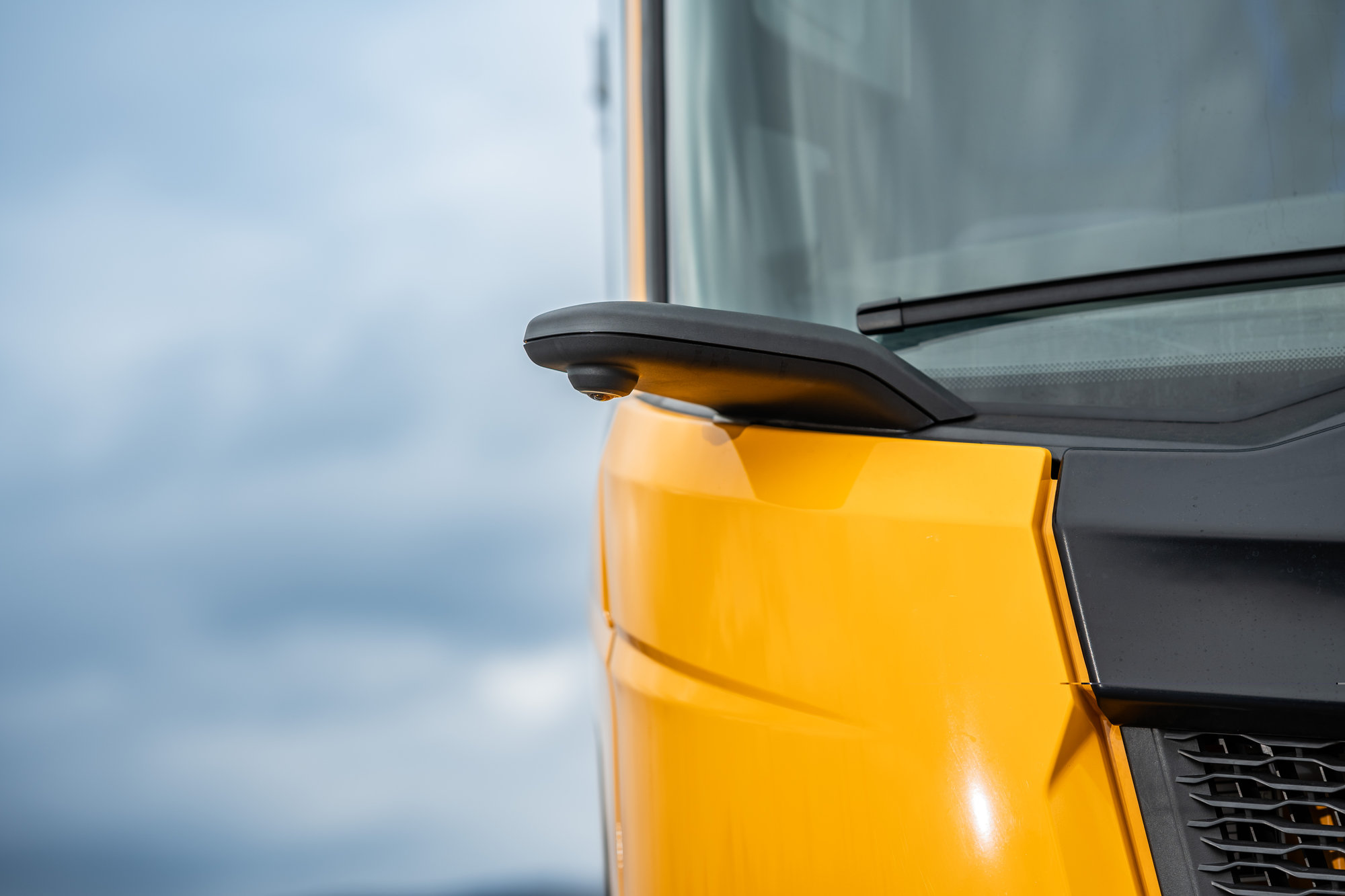

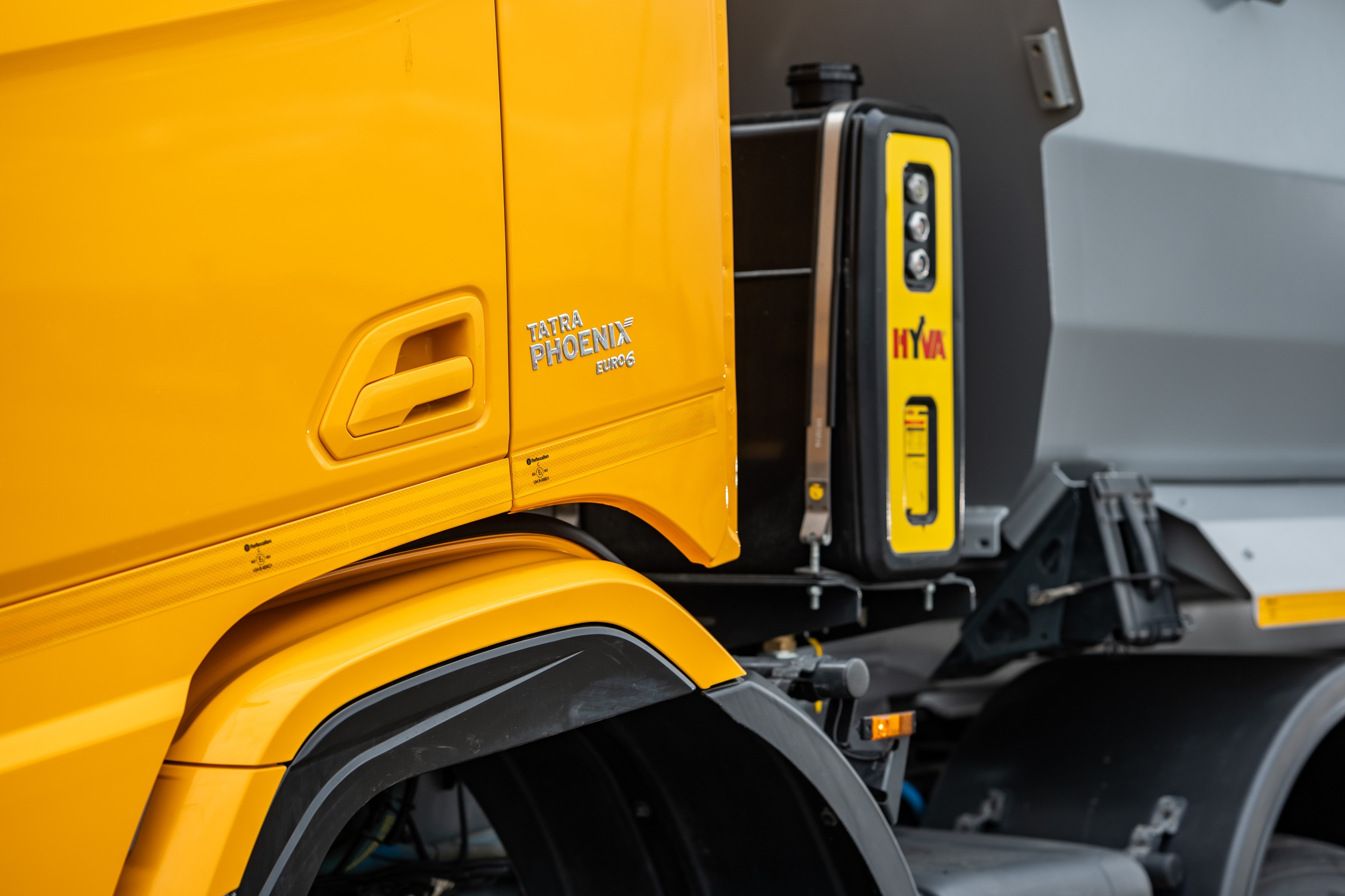

Wide selection of accessories and design features

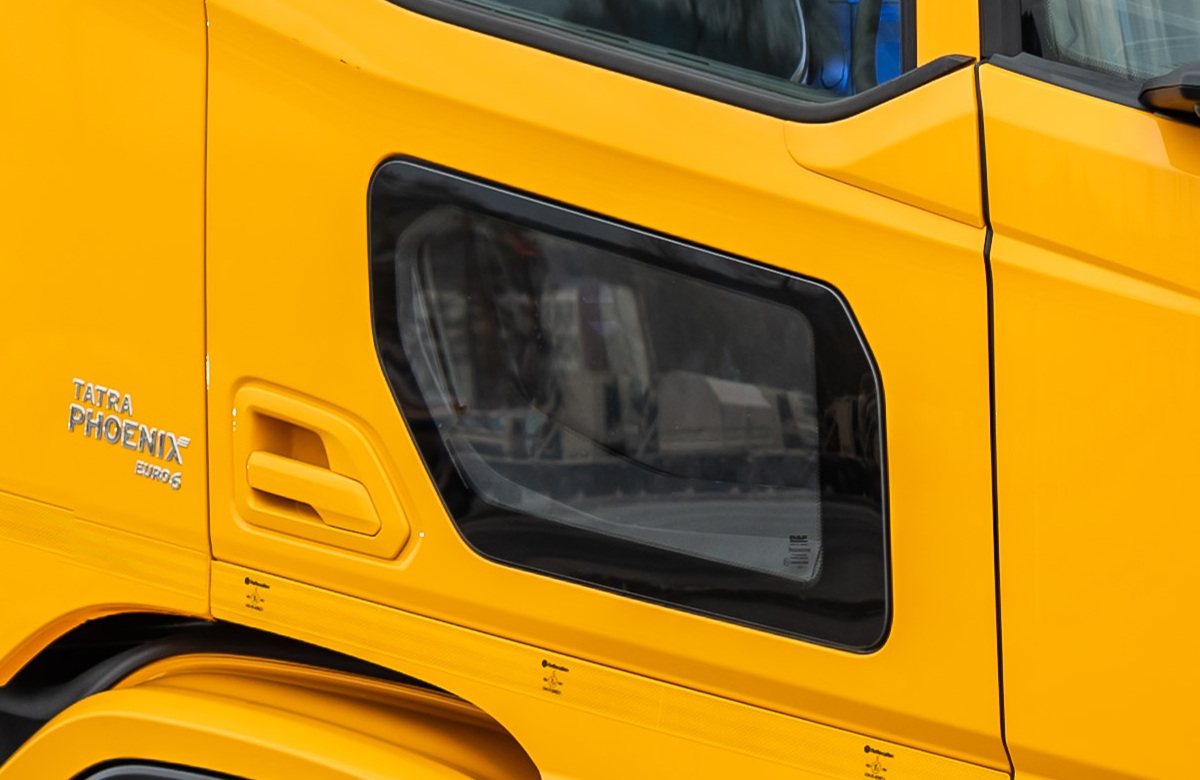

Optional door with curbside window for better view

1 -

TATRA TECHNICAL SOLUTION

Unique
Tatra Concept

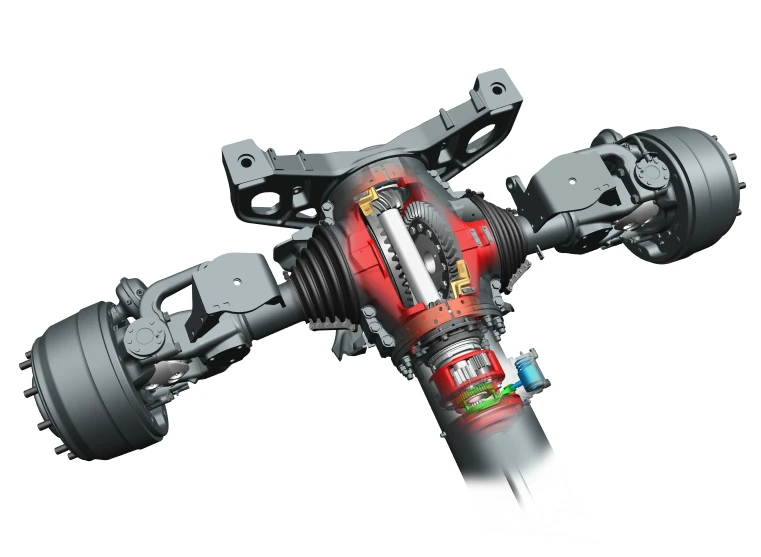

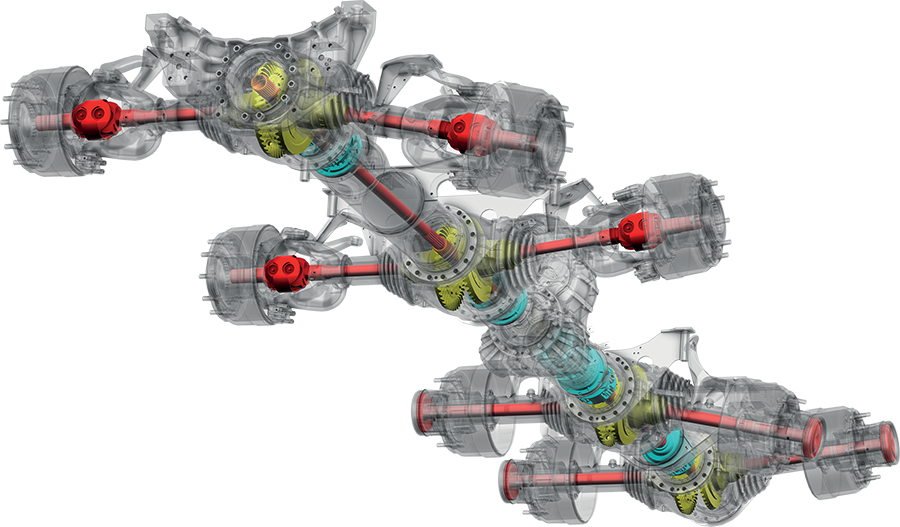

At the heart of every TATRA chassis is the iconic central backbone tube, which houses the drive shafts and differentials. This unique concept, combined with independent swing axles and air suspension, gives TATRA vehicles exceptional driving characteristics and stability on any terrain.

Chassis

AXLES

Legendary Tatra Chassis

Protects superstructures

High torsional and bending rigidity

Modular system

Enables the production of multi-axle vehicles according to customer requirements

Central backbone tube

Driveline shafts protected from external influences

High resistance

Low operating costs

INDEPENDENTLY SWINGING HALF-AXLES

exceptional off-road capability

Independent wheel movement ensures maximum traction even in extreme terrain

Higher speed

Independently swinging half-axles enable smooth driving over uneven surfaces and maintain a higher average speed

Impact resistance

Swinging semi-axles dampen vibrations and protect the frame and superstructure from damage.

Stability and strength

The central backbone tube eliminates torsional forces and increases vehicle stability

ENGINES

Power

Emission standards

Paccar MX-11

A powerful and reliable 10.8 liter engine designed for regional and medium-duty applications. It offers high torque and efficient fuel consumption, ensuring optimal performance and long service life.

Power

300, 330 kW

Emission standards

Euro 6

Paccar MX-13

A robust 12.9 liter engine designed for long distances and heavy loads. It excels in high performance and extreme durability, ideal for demanding operating conditions.

Power

315, 355, 390 kW

Emission standards

Euro 6

Paccar PX-7

Compact 6.7 liter engine optimized for medium-duty and regional transport. It combines low weight and fuel efficiency with a flexible power range.

Power

227 kW

Emission standards

Euro 6

Modern engines with a wide range of power variants

TECHNICAL SOLUTION

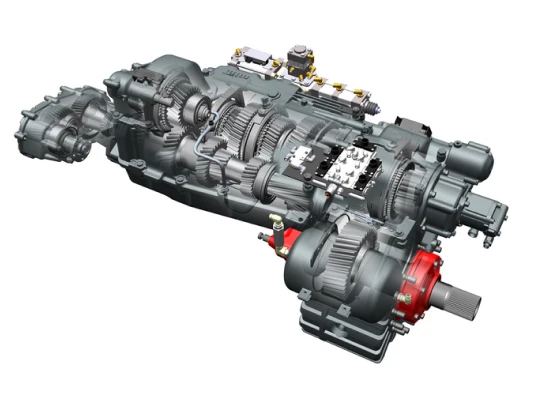

TRANSMISSIONS

PERFECT MATCH WITH THE CHASSIS

TATRA PHOENIX vehicles are primarily equipped with ZF TraXon automated transmissions, but a fully automatic Allison transmission is available as an option.

TATRA auxiliary transmission, integrated with the central backbone tube, offer a wide range of gear ratios, so you can always choose the ideal configuration for your specific operation.

Gearing variations tailored to specific needs
Automated and automatic transmissions
Wide range of optional variants (Power Take Off, cooler, etc.)

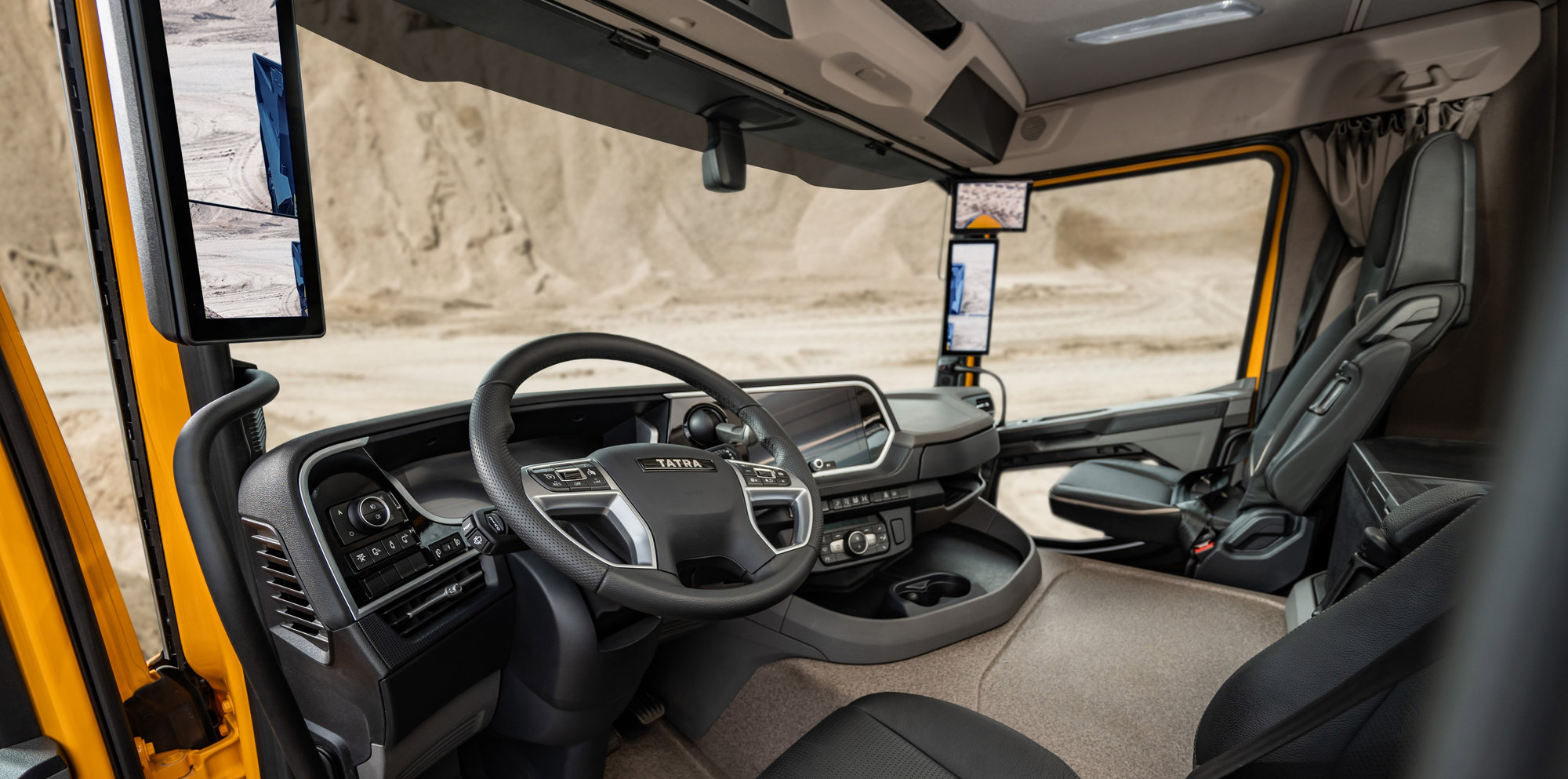

NEW SHAPE AND SPACE DIMENSION

The new TATRA PHOENIX offers a completely new interior with unrivalled views, a luxurious dashboard and increased interior space.

The model features a spacious and ergonomically friendly cabin.

Sophisticated ergonomics

Large interior space

Optional touch screens

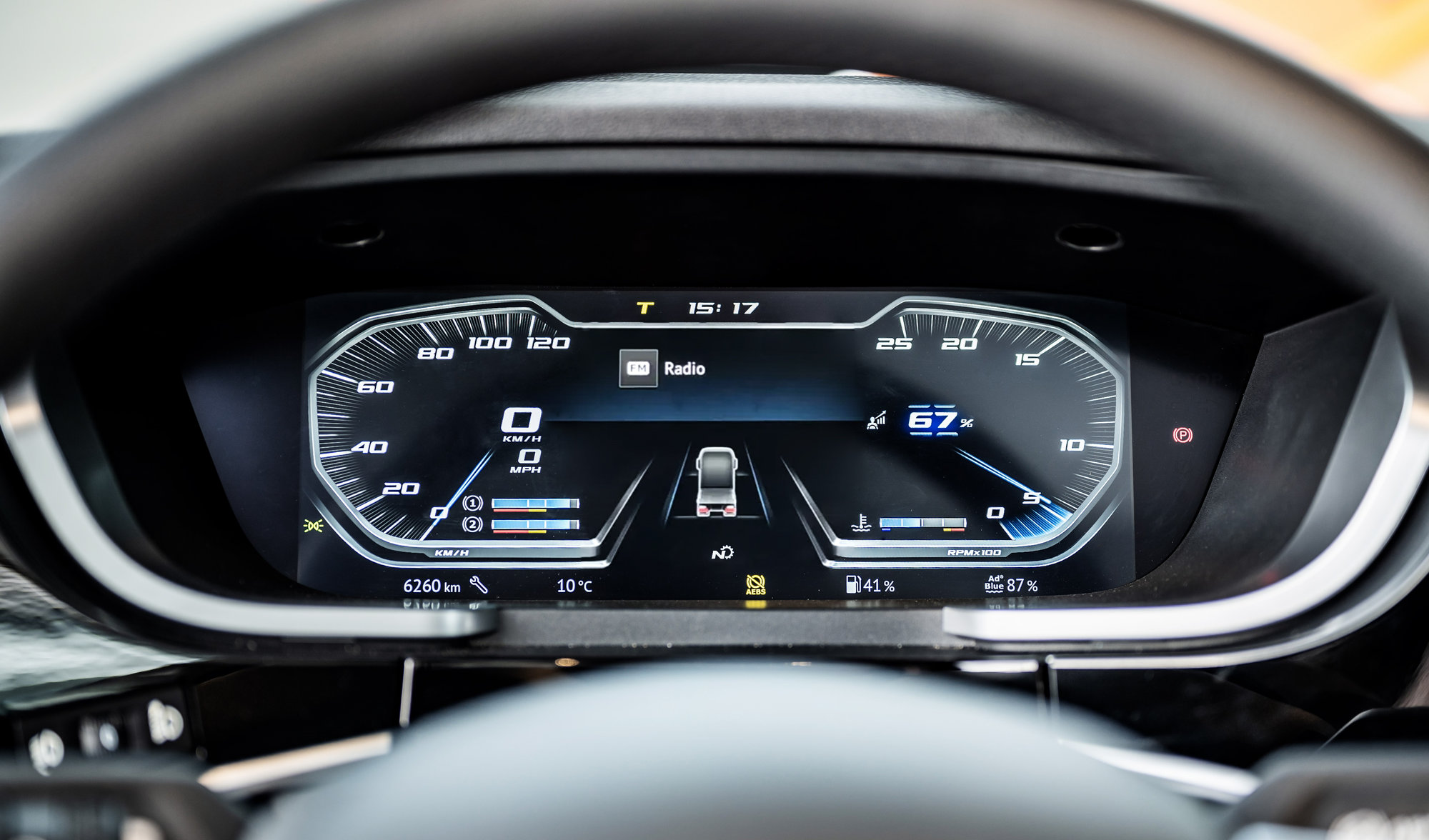

Digital instrument cluster

PHOTO AND VIDEO

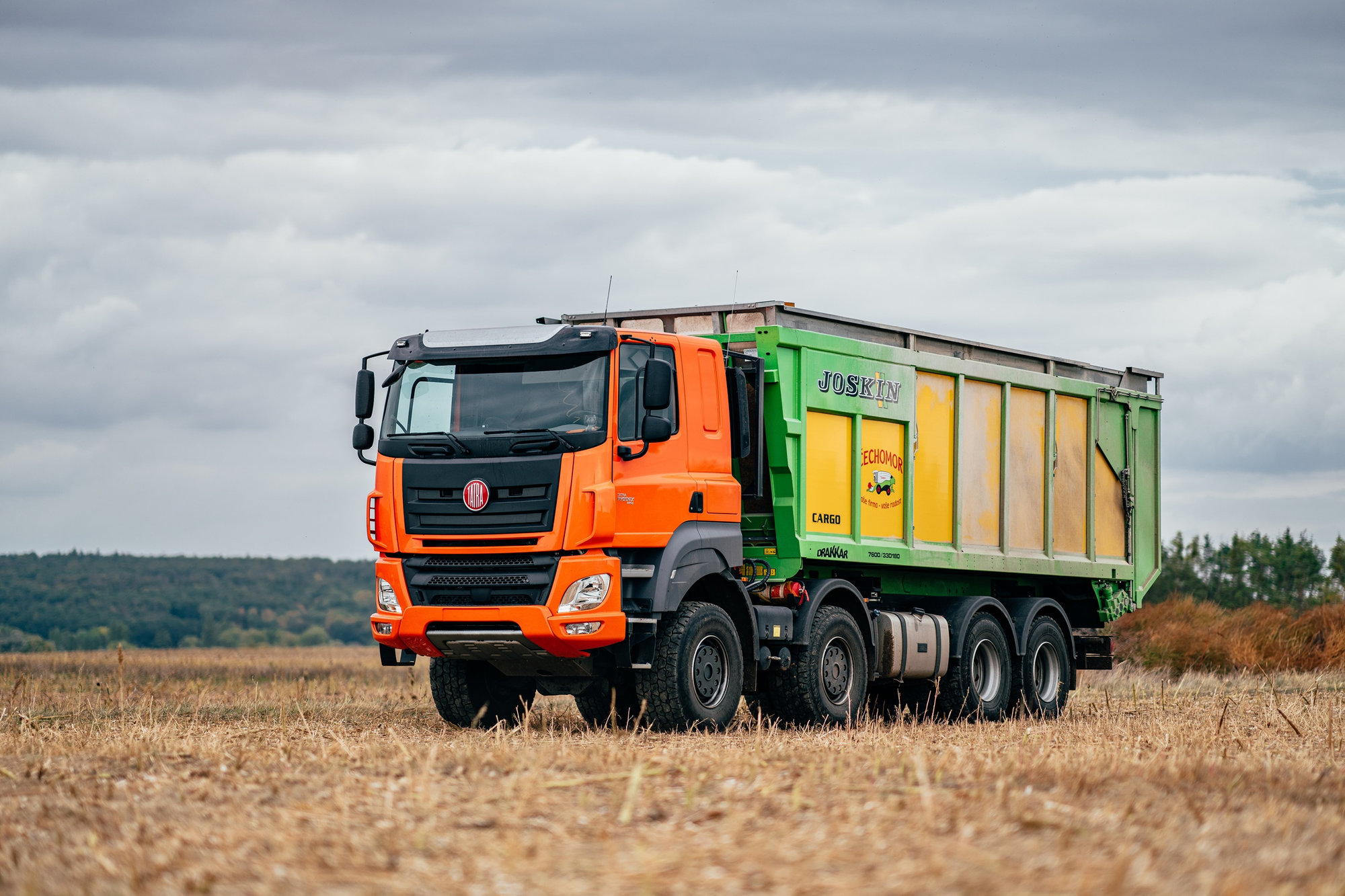

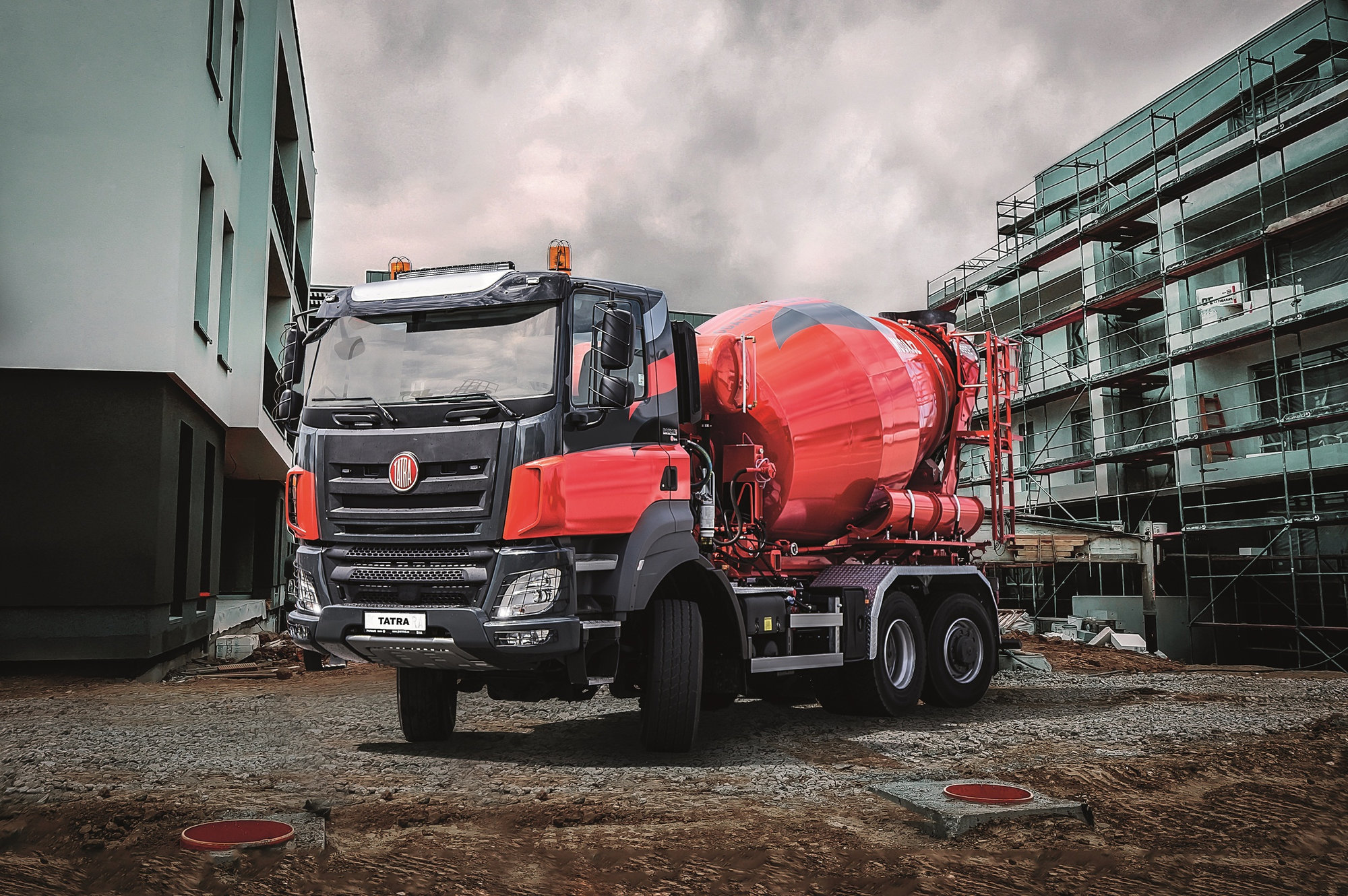

PROVEN SOLUTION

For more than a decade, TATRA PHOENIX trucks have been indispensable helpers not only in the toughest conditions on our planet, but also offer optimal efficiency and excellent driving stability even on paved roads.
