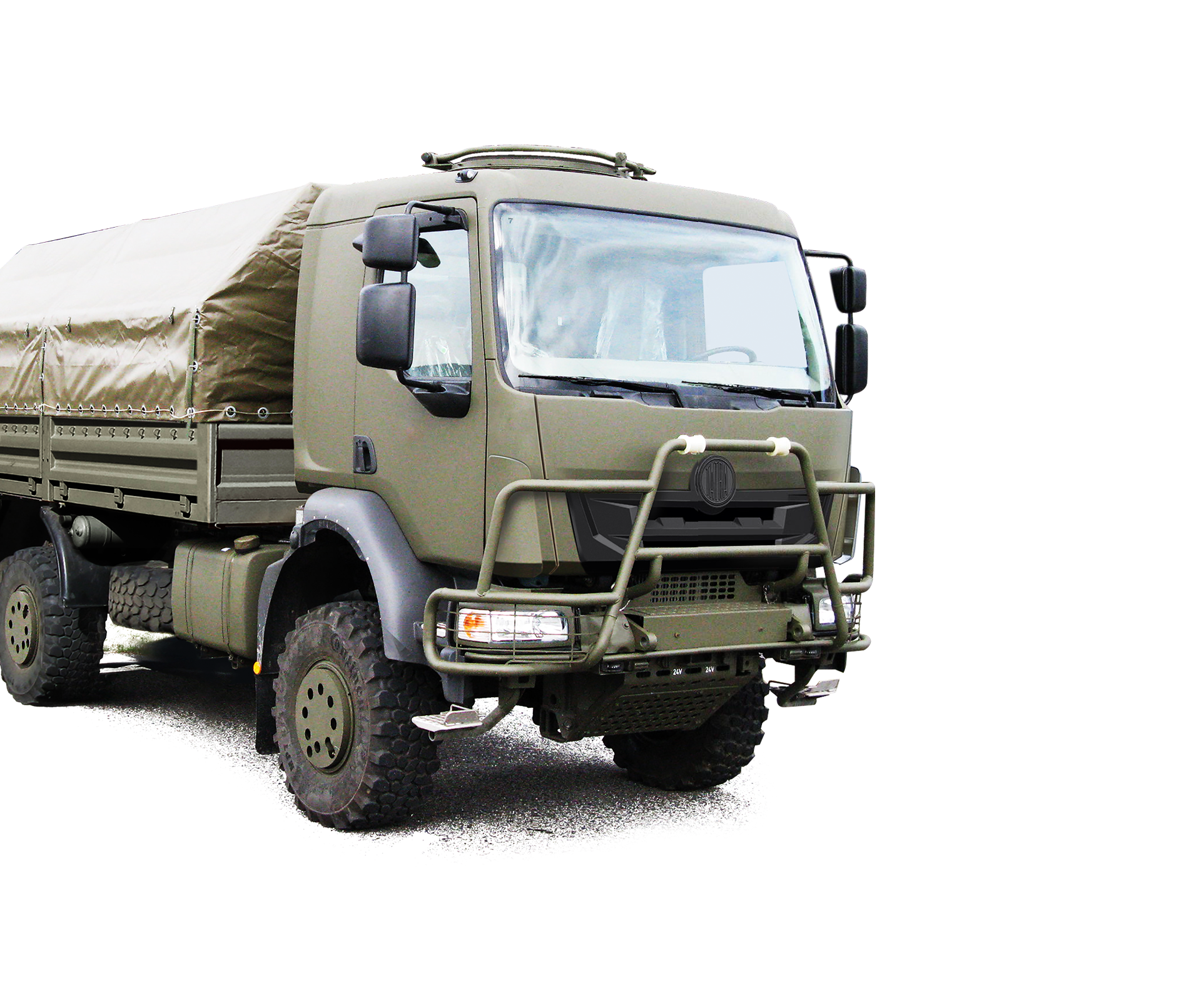

Tatra 810 M

DID YOU KNOW THAT...

The modernized TATRA 810 M vehicle was unveiled to the public for the first time at the IDET 2025 defense and security technology trade fair in Brno.

2025

Launch of the modernized series

Custom-made superstructures

4x4 - 6x6

Available chassis variants

LOGISTICS TRUCKS FOR EVERY MISSION

A robust N2/N3 category logistics and security military vehicle designed for maximum reliability in the most demanding conditions. It uses a modernized ladder frame and Tatra Rigid portal rigid axles, which ensure exceptional off-road capability, durability, and long service life even under extreme loads.

More than 500 kg higher payload compared to its predecessor

Liquid-cooled six-cylinder engine of foreign origin

TATRA Rigid

GALLERY

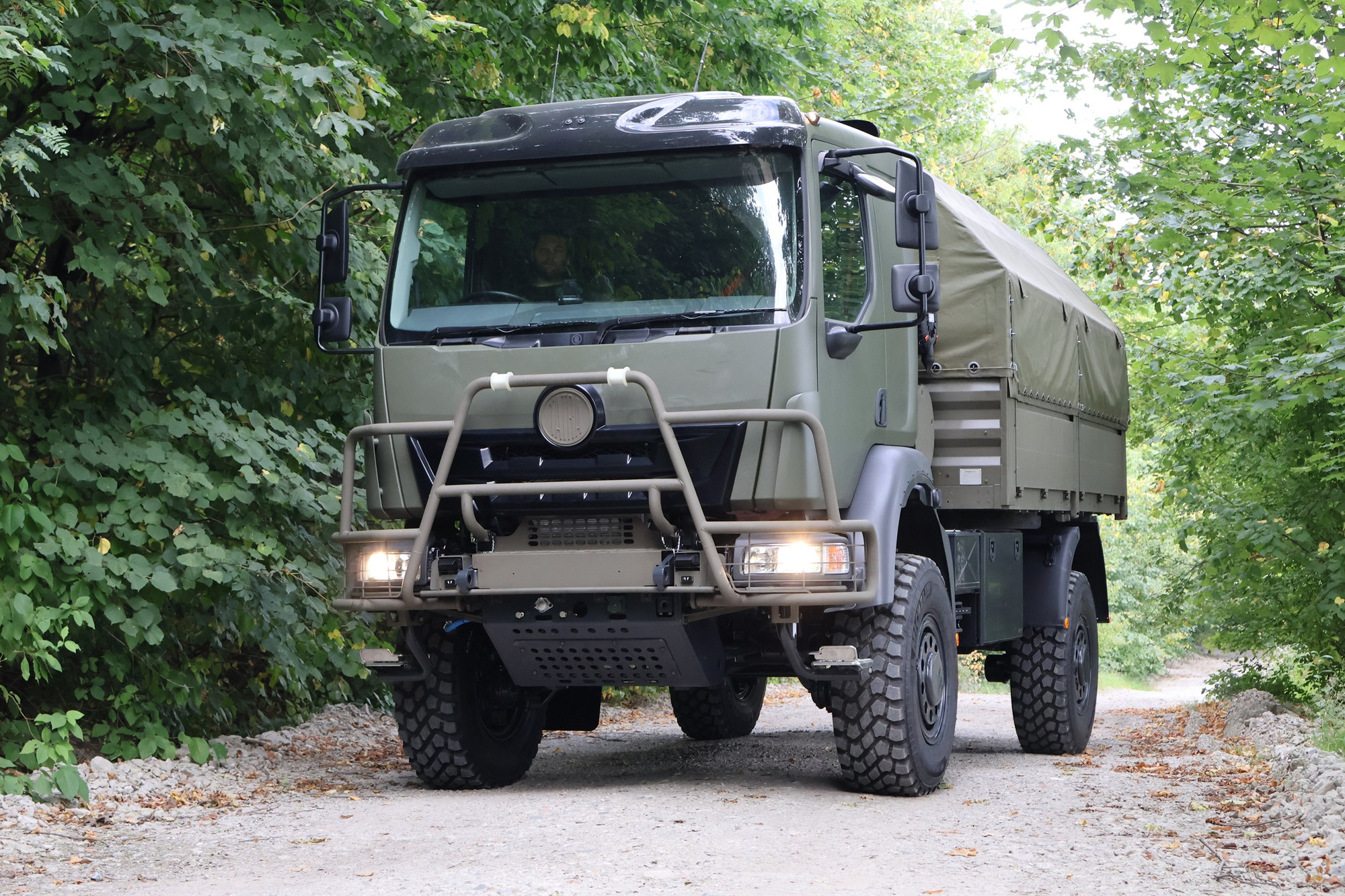

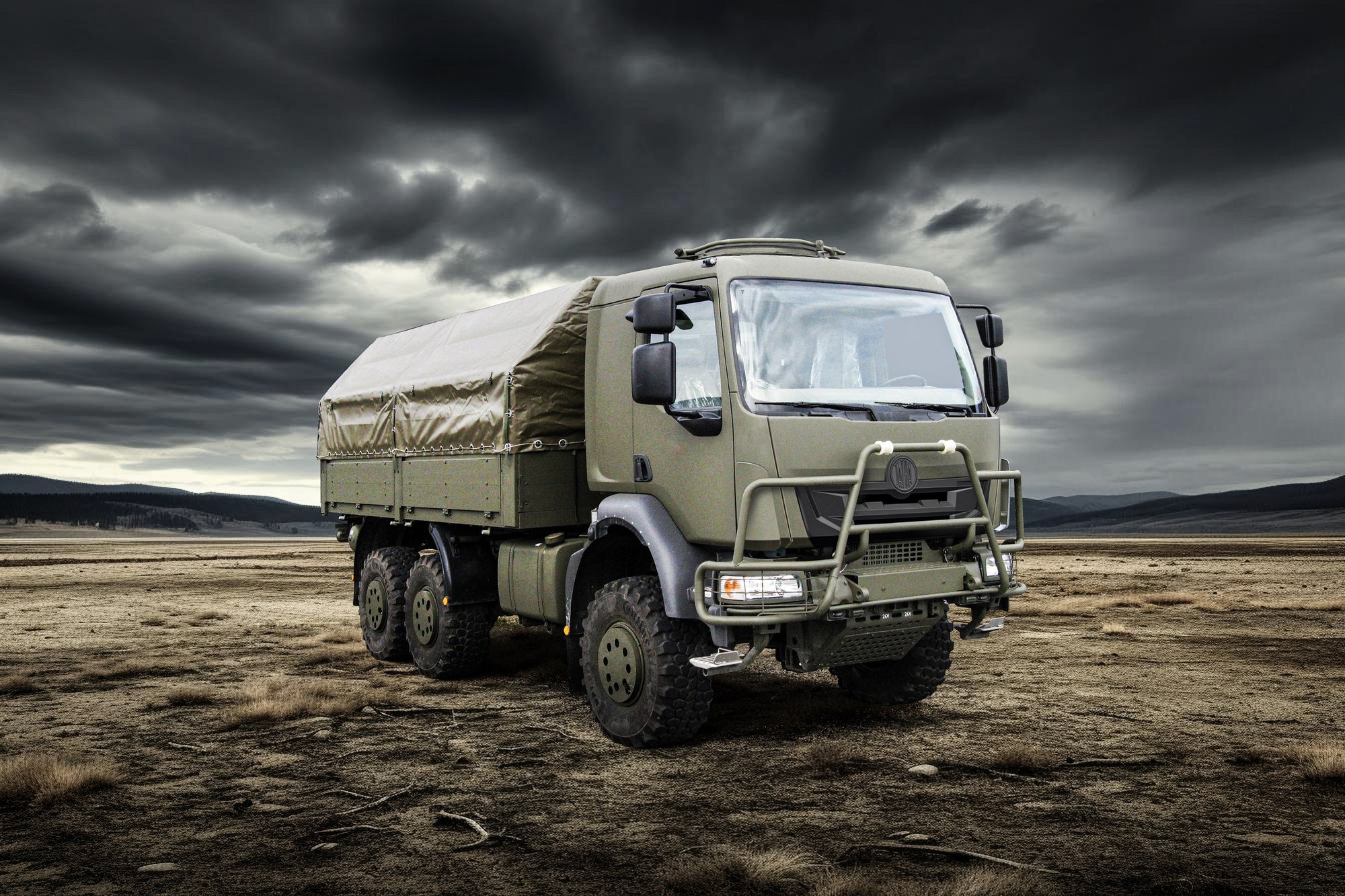

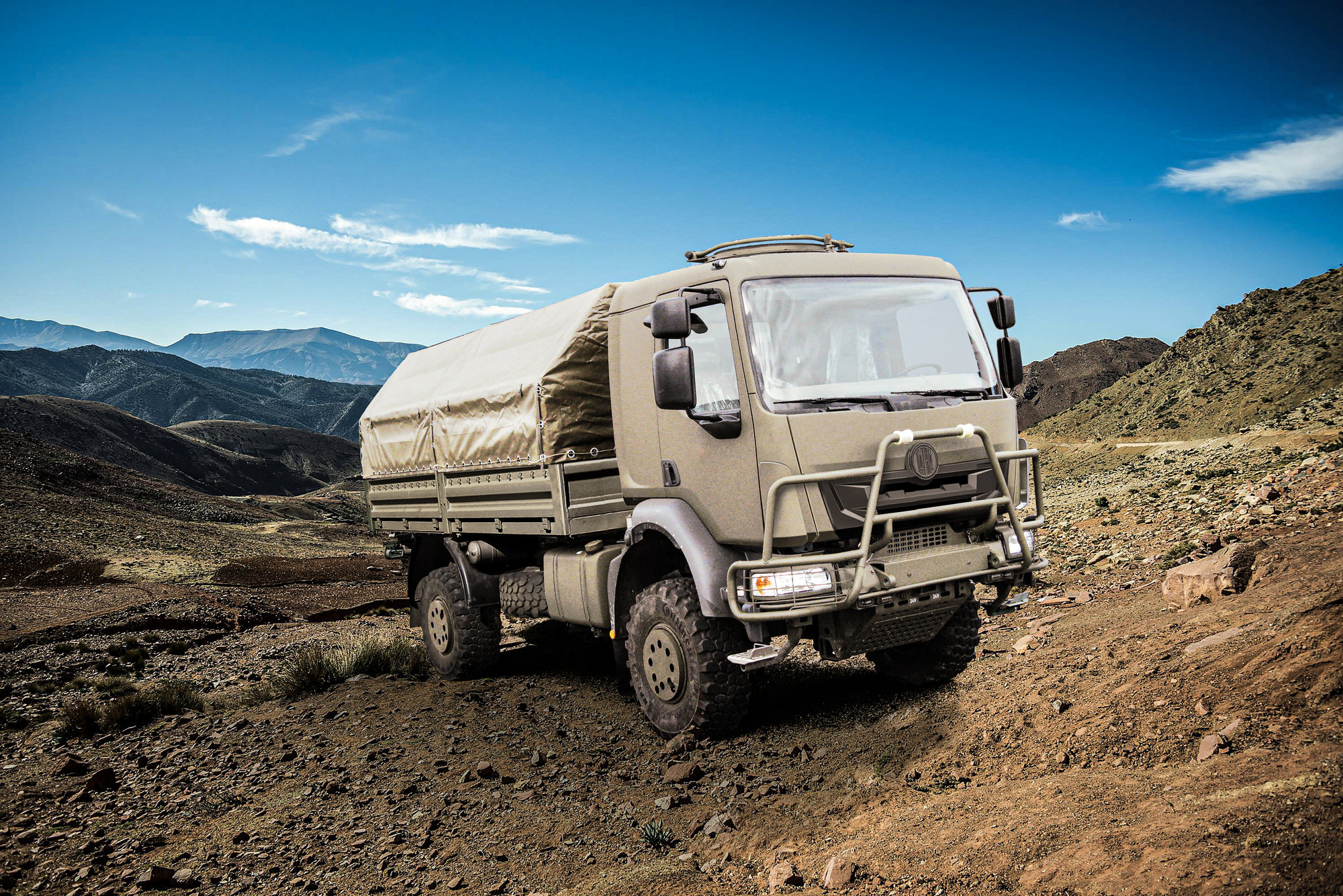

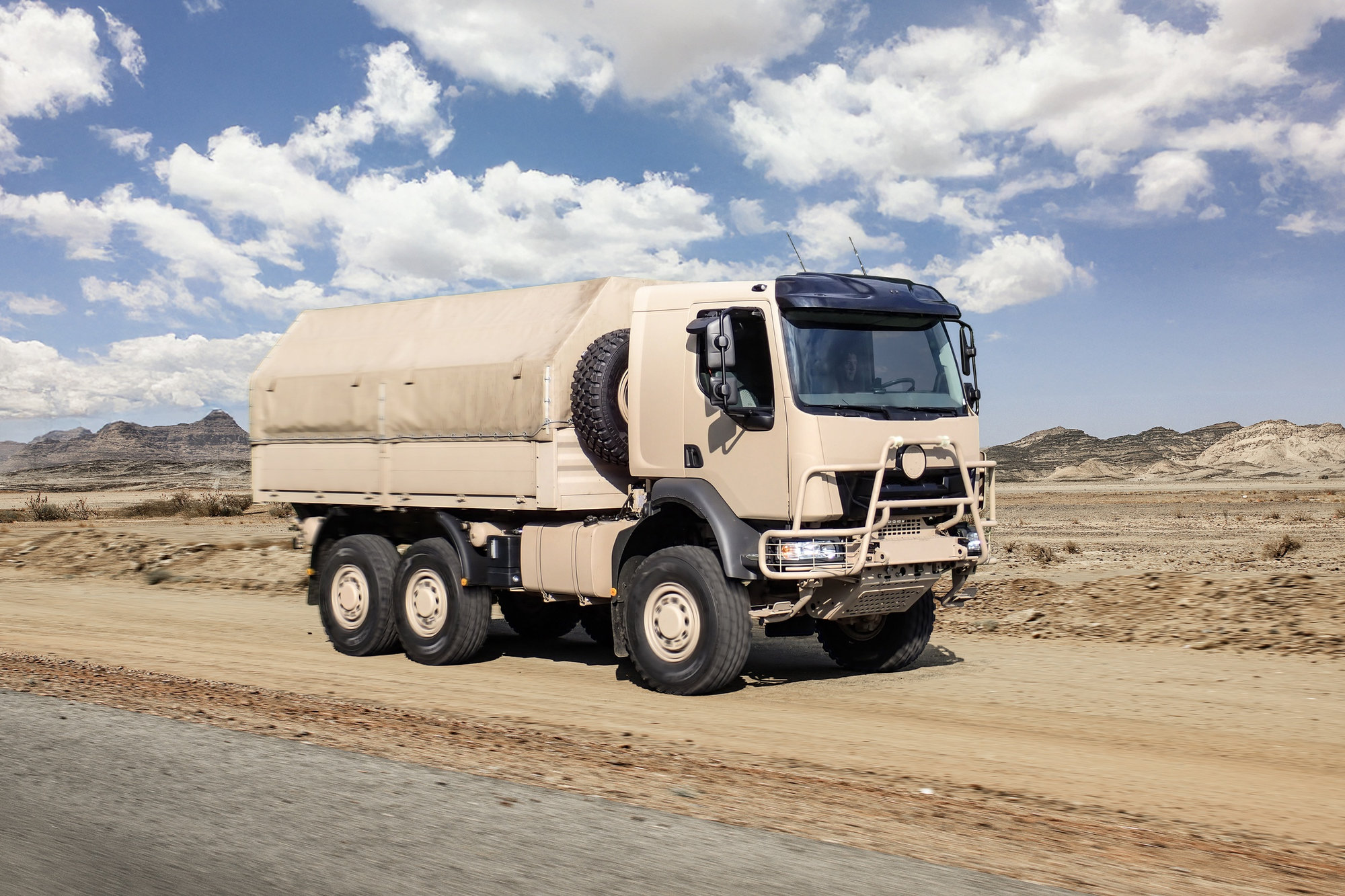

TATRA 810 M

A powerful range of logistics vehicles that combines durability with modern design. Robust construction, an ergonomic cab, and a reliable liquid-cooled engine ensure maximum operational reliability and efficiency in everyday use.

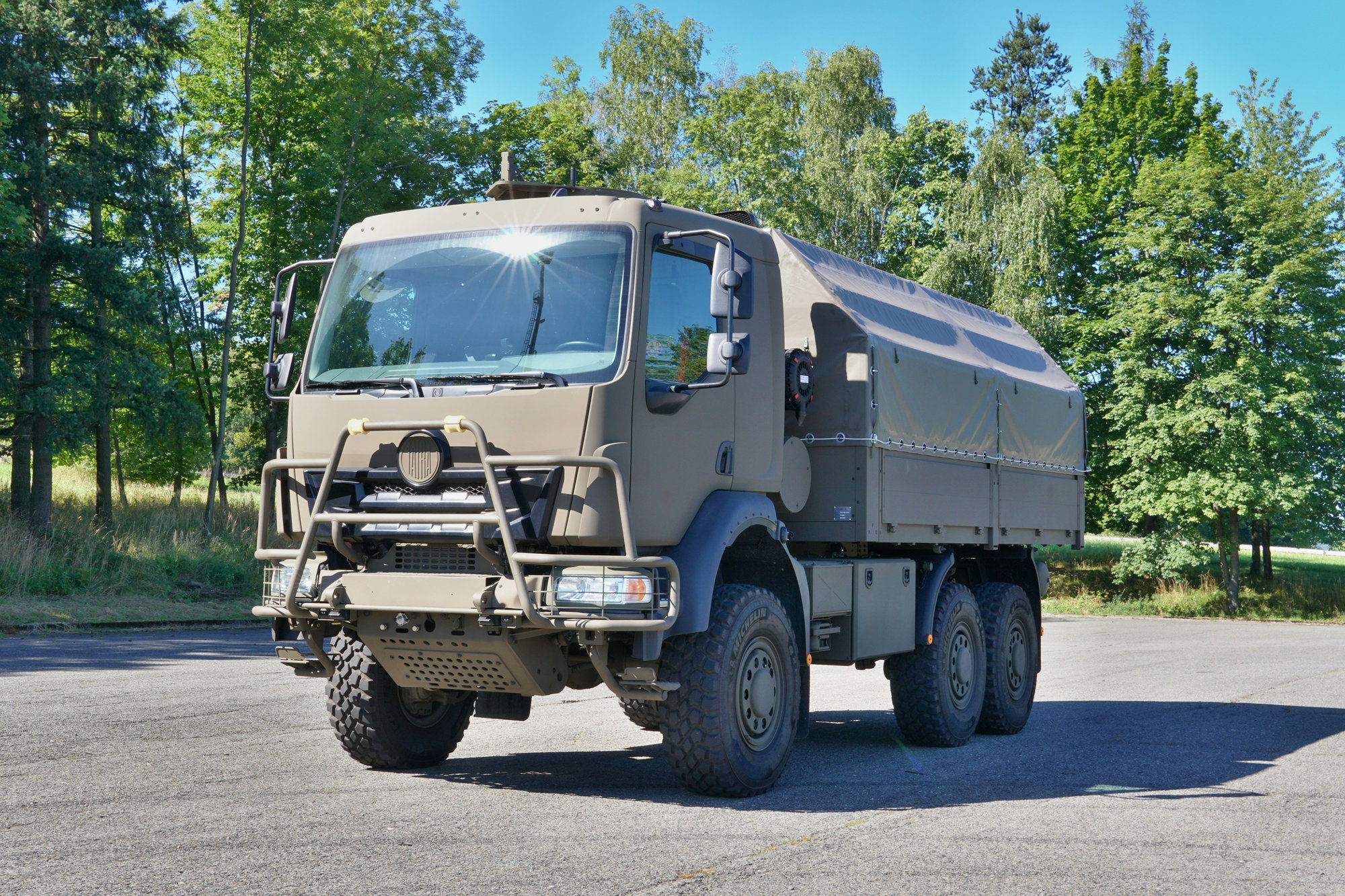

TATRA 810 M 6x6 on the Tatra test track.

1 -

TECHNICAL SOLUTION

Tatra Rigid
Concept

The classic ladder frame is fitted with two or three rigid portal axles of original TATRA RIGID design with mechanical suspension.

Chassis

TATRA Rigid

Suspension

The front axle is mechanical with coil springs, torsion stabilizer and telescopic shock absorbers. The rear axles are equipped with leaf springs in a rocker arrangement.

Central inflation

Possibility of changing tire pressure according to the terrain or adding air in case of damage.

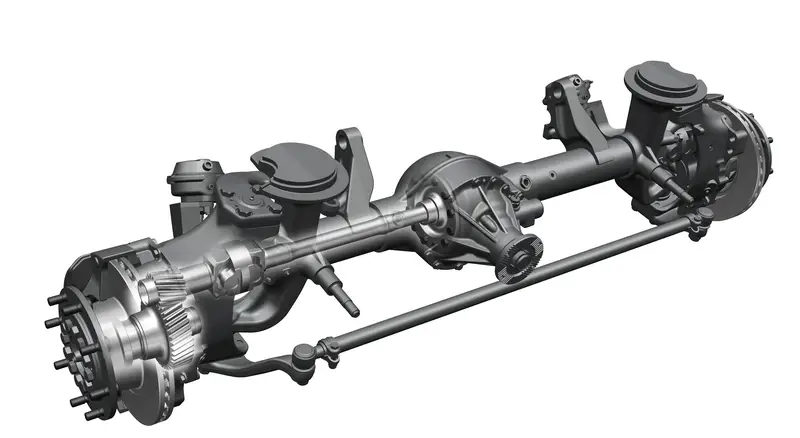

Axles

They are equipped with wheel reductions and axle differential locks, and the rear axles also have an interaxle differential lock.

Weights T 810M

Curb weight 8.8 t, payload 5.2 t and technically permissible total weight 14 t. Maximum trailer weight 12 tons.

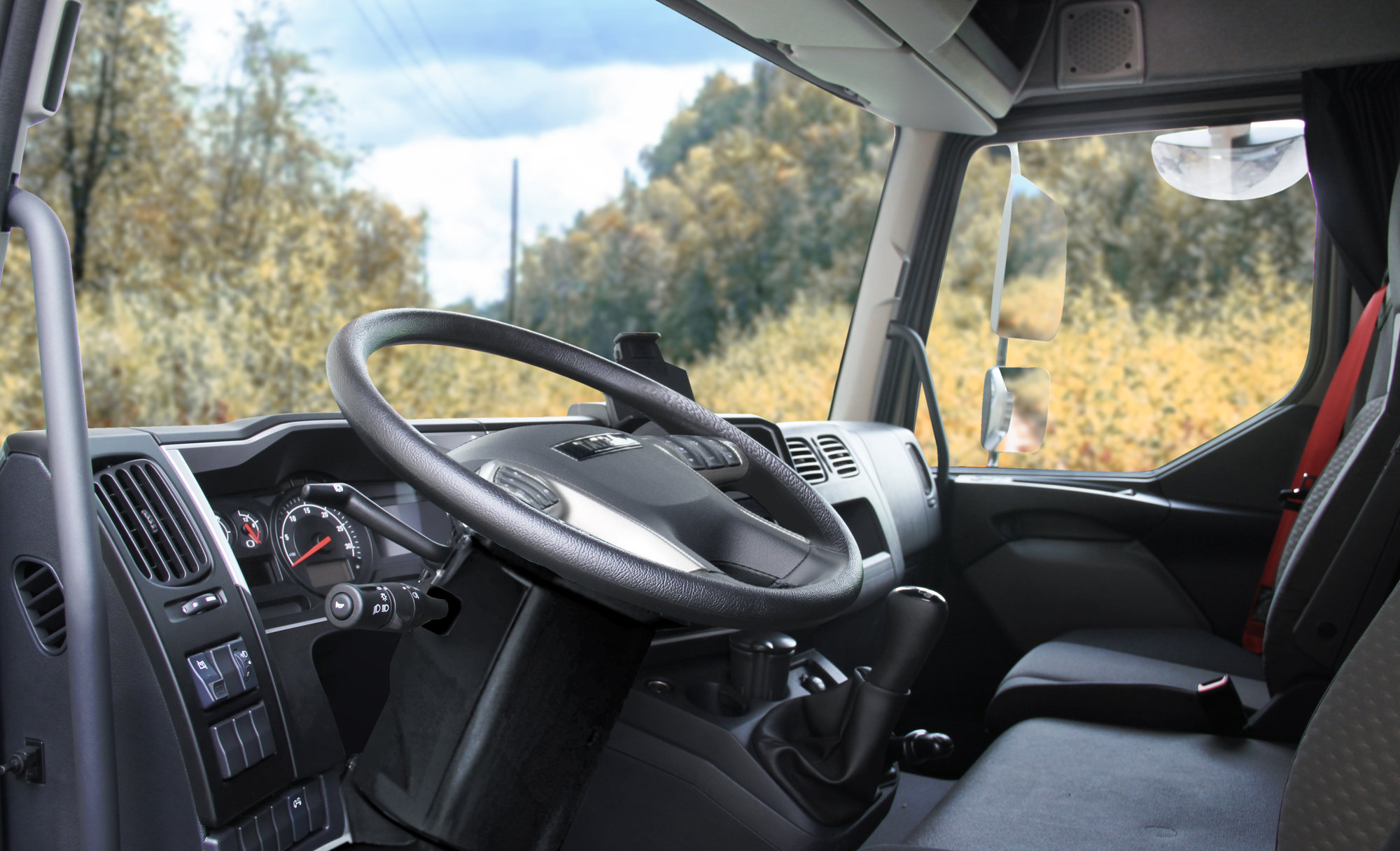

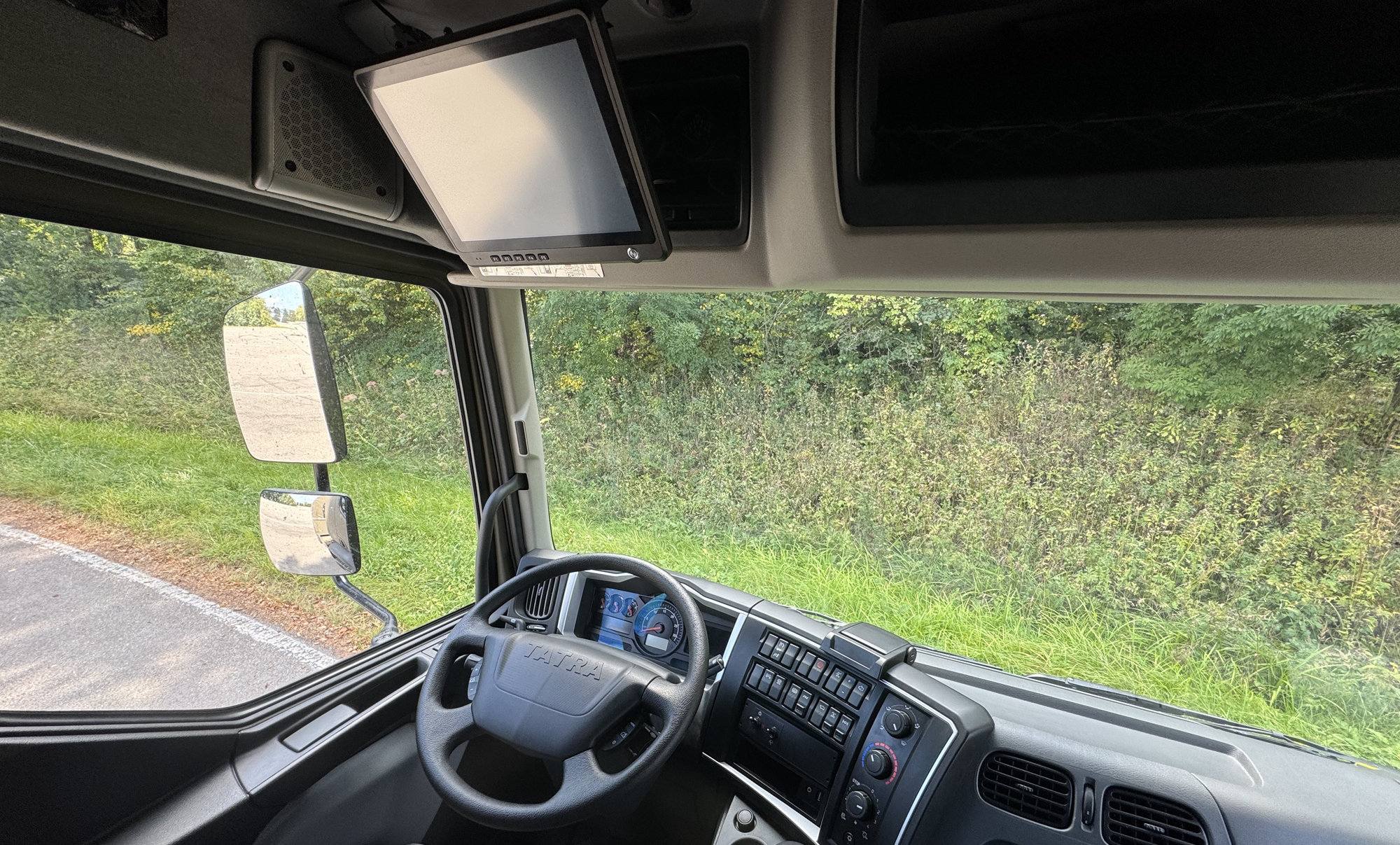

Maximum comfort in the cabin

A modern and comfortable cabin for maximum crew comfort. Sophisticated design, ergonomic control layout, and high-quality materials ensure a safe and comfortable stay inside the cabin, with every detail designed with an emphasis on practicality and efficiency.
